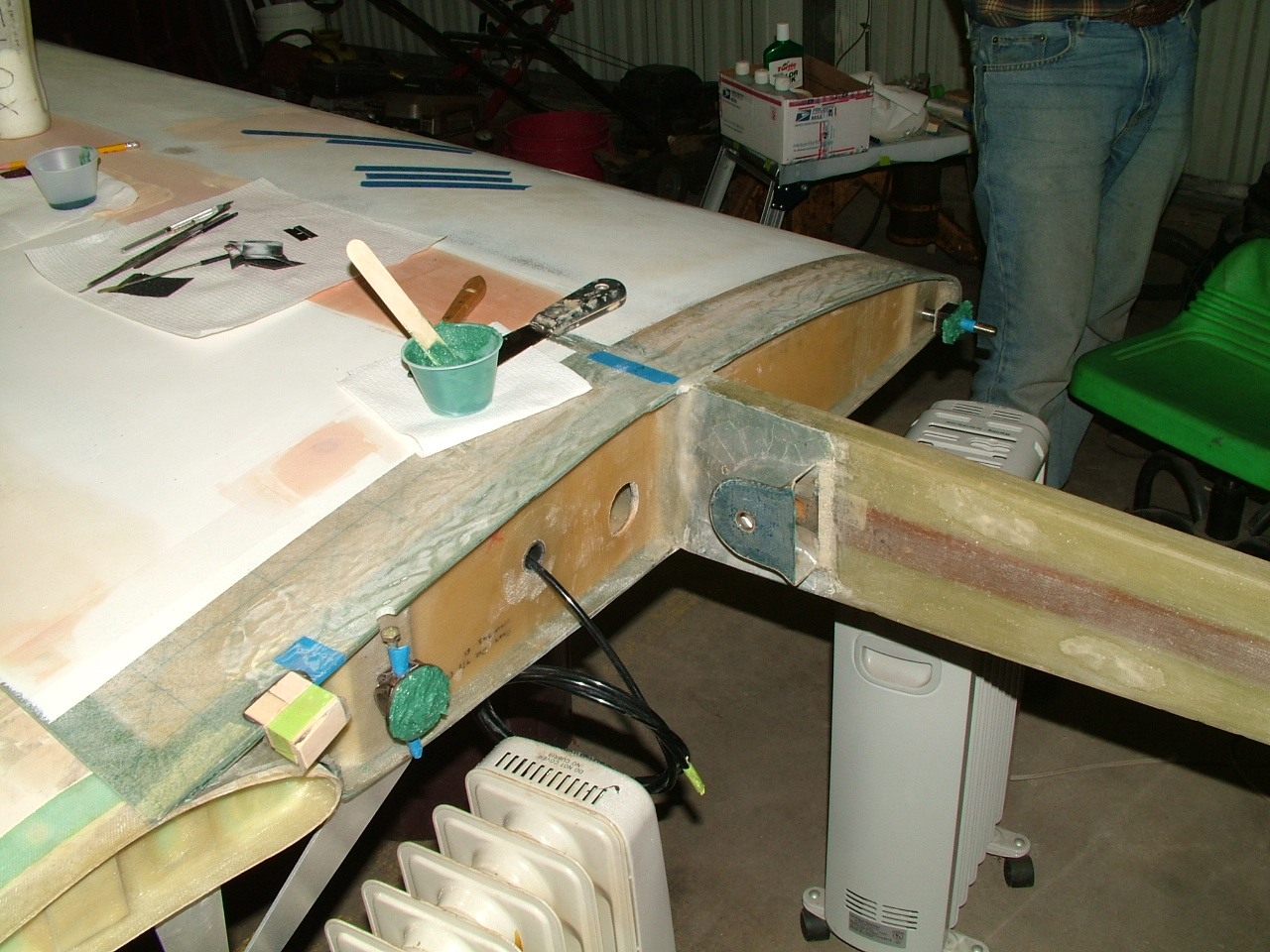

Bonding Port lift pin sockets 9.

Sockets wet out and covered with Redux / Flox.
We were moving the heaters between under the sockets to under the pads on fuse to keep both warm.
Once wing was sent home we covered the top of wing to fuse gap with paper towels and kept temp ~ 89F.
Y10-10-28
