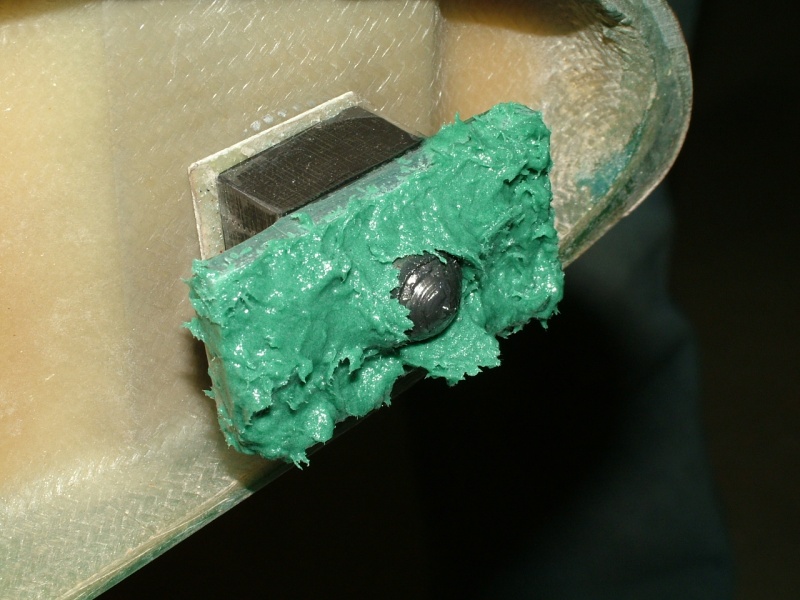

Bonding Port lift pin sockets 14.

Temporary pin removed.
There is a temporary .045" spacer double sticky taped to the outboard side of the socket to keep that amount of space between socket and the root of the wing.
Y10-10-28

Date: 10/28/2010
