N4211W wing rigging 4.

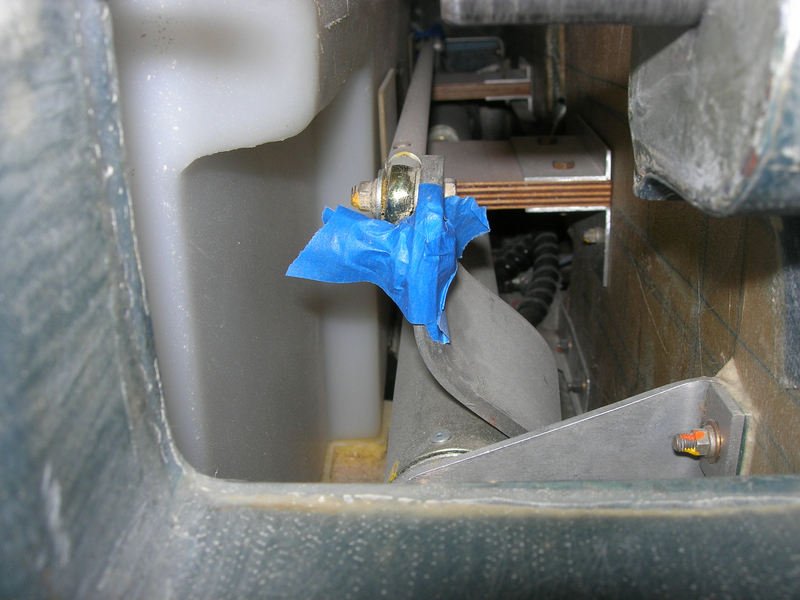

Here you see the culprit. I screwed together the hardware for the outboard aileron pushrod Heims fitting after I removed the pushrod. It moved forward and caught my spar. I taped the hardware aft for both the both starboard and port.
Y10-10-10

Date: 10/09/2010
