Homemade AOA gauge 1.

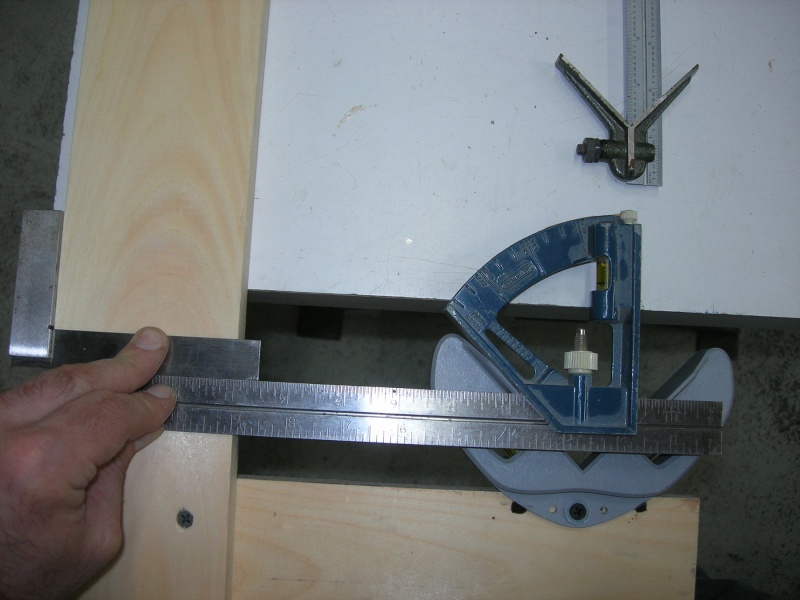

We fabricated this AOA gauge using Bud's drawing on his "rigging" paper as a guideline. It finds the center of lead edge and trail edge.
We purchased a picture frame level from Home Depot, mutilated it and JB KWIKed and screwed it to a 1 x 4.
