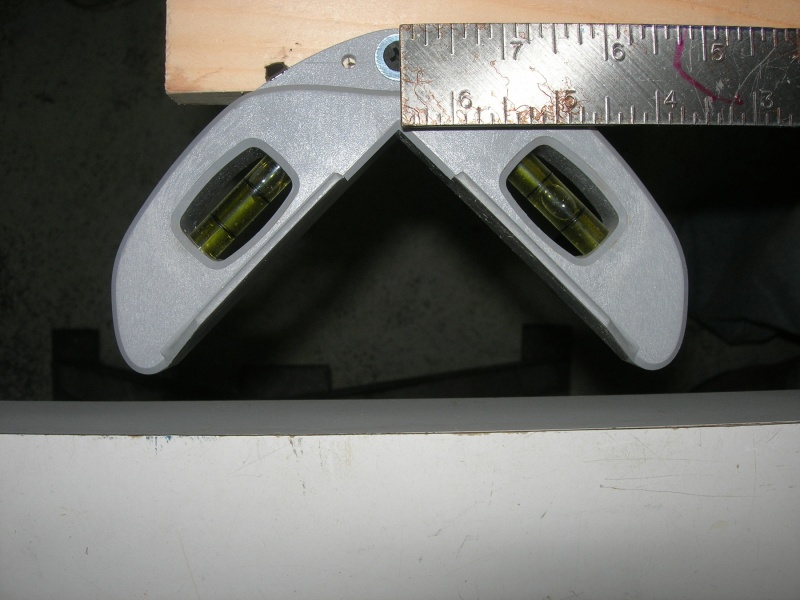

Homemade AOA gauge 2.

Since the flap and aileron is thin, will just hold the square to the center.
We will post picts of the gauge in use later.
Y10-10-14

Date: 10/11/2010
