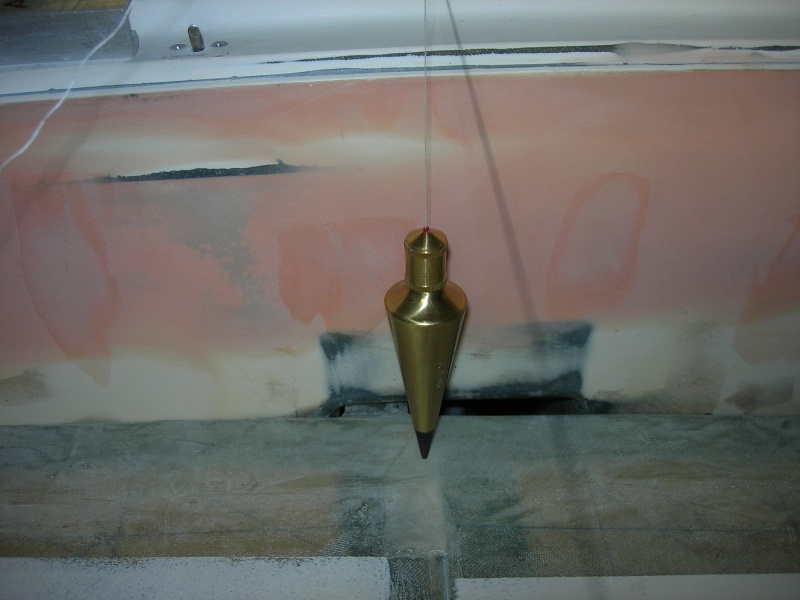

Making awful fit of lift pads correct 24.

Starboard wing. Increasing hole in fuse for lift pins 3 sizes at a time.
Here you can see we are close.
I am using Hot Air Balloon sewing thread, (size E Dacron), strung between wingtips.
We later added a strip of masking tape to spar edge for better visual acuity.
Y10-10-14

Date: 10/14/2010
