Bonding of Starboard lift pin sockets 1.

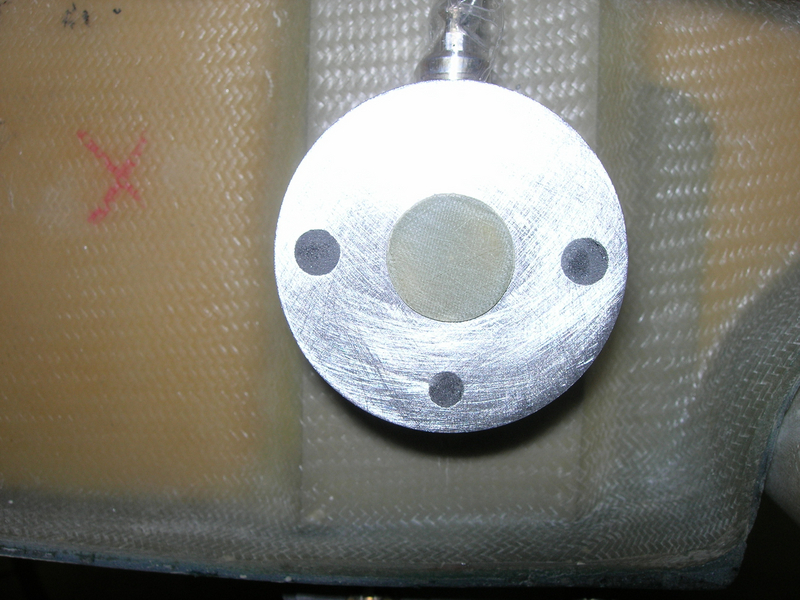

After 4 BID layup on rear lift pads cured, we verified fit is still acceptable.
We proceeded to bond on dime sized .032" G10 scuff sanded spacer to starboard socket with JB Weld KWIK.
Y10-10-19

Date: 10/19/2010
