Bonding of Starboard lift pin sockets 5.

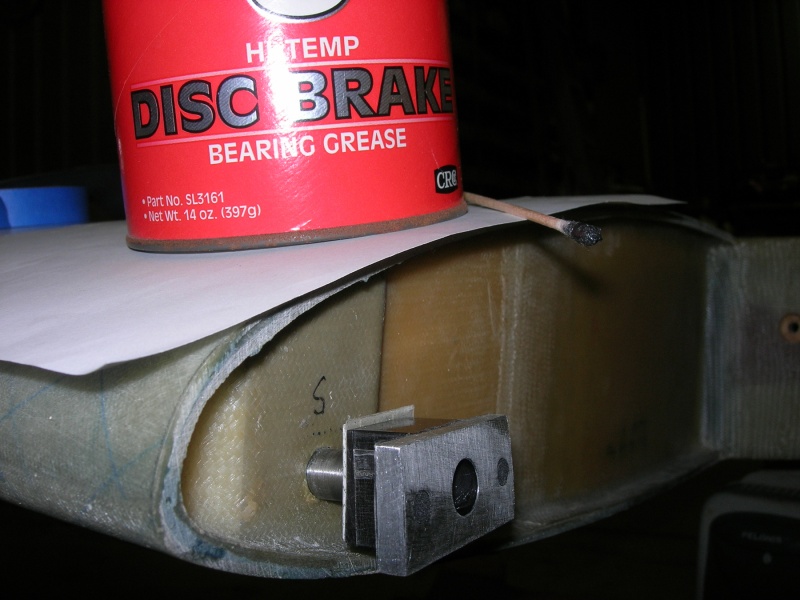

Front lift pin socket and pin greased up before Redux is applied.
Note:
** 3M 375 packaging tape applied where we don't want the Redux to adhere.
**Temporary .045" spacer is installed between wing and lift pin socket to give proper "wigulation".
