Bonding of Starboard lift pin sockets 20.

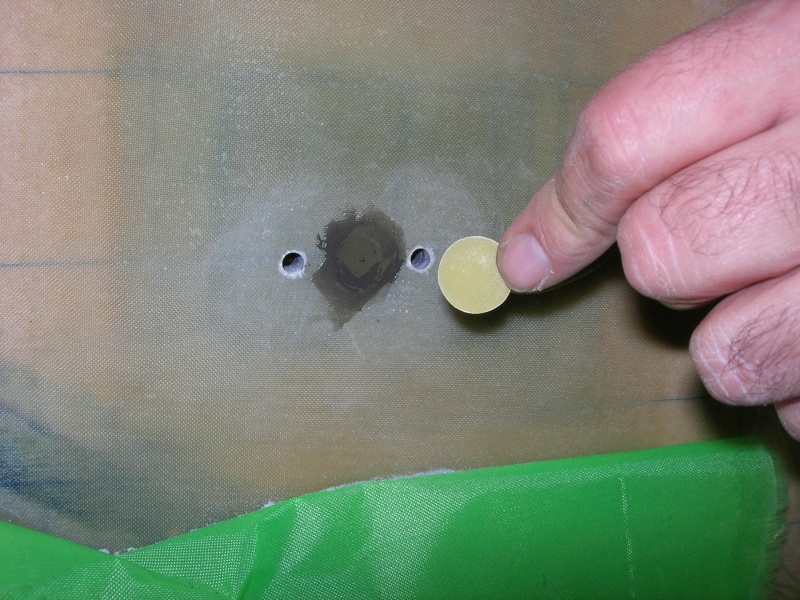

I JB KWIK welded in place a G-10 plug to prevent Aeropoxy / Flox from filling the front lift pin socket when Floxxing in place the blue foam on the inside to help stiffen this area, (after 3 BID laid up on the foam).
Y10-10-24

Date: 10/20/2010

Size:
Full size: 1800x1350

next last

first previous

Bonding of Starboard lift pin sockets 20.

Photo Properties

summary details

Make	NIKON	Model	E5900
Aperture Value	f/4.8	Color Space	sRGB
Exposure Bias Value	0 EV	Exposure Program	Program
Flash	Flash, Auto-Mode	Focal Length	7.8 mm
ISO	AUTO	Metering Mode	Multi-Segment
Shutter Speed Value	0.02 sec	Date/Time	Wed 20 Oct 2010 11:48:34 PM UTC
