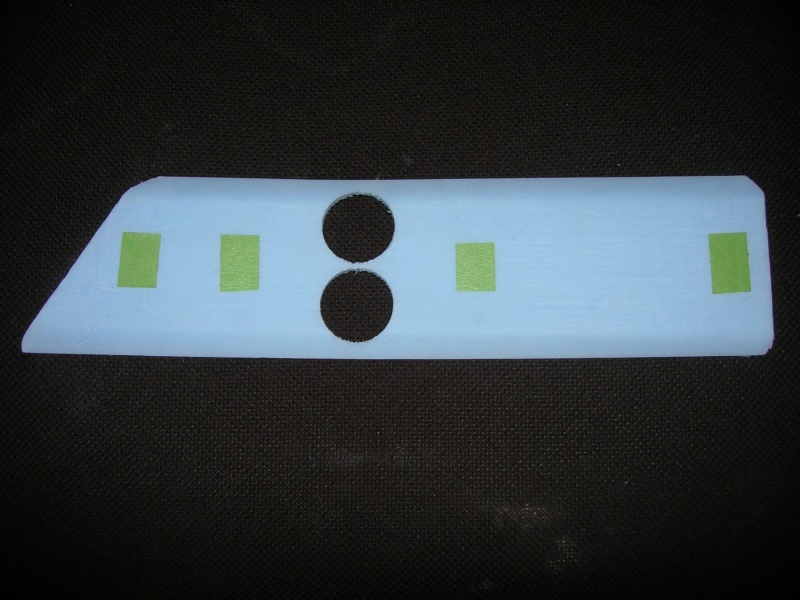

Front Starboard fuse stiffening for lift socket 3.

Cut to the shape we needed, then beveled and slightly rounded the edges. Green taped areas are where we will apply force with our custom clamping device.
Y10-10-25

Date: 10/24/2010
