Front Starboard fuse stiffening for lift socket 4.

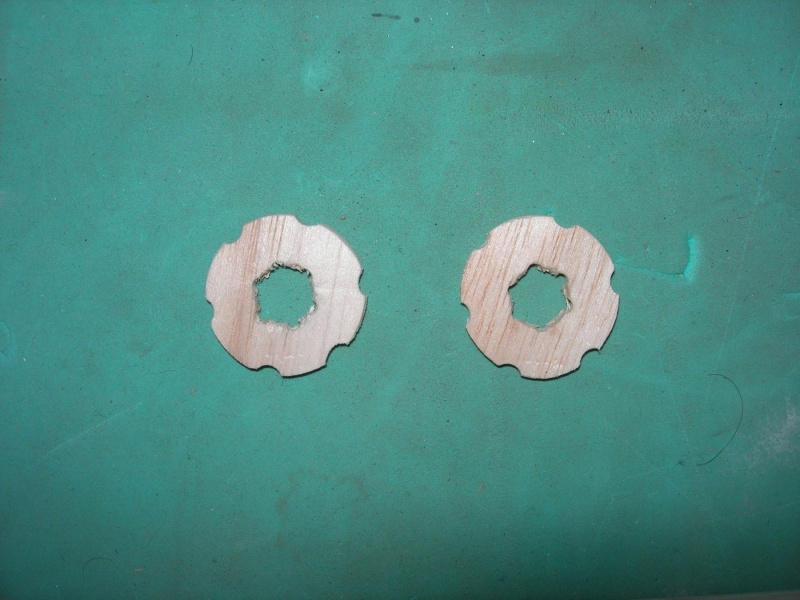

To prevent hydraulic lock upon installation over Floxxed bolts and washers, I files some relief slots in the "wooden nickels".
Y10-10-25

Date: 10/24/2010

Size:
Full size: 1800x1350

Front Starboard fuse stiffening for lift socket 4.
