Wing rigging tools 2.

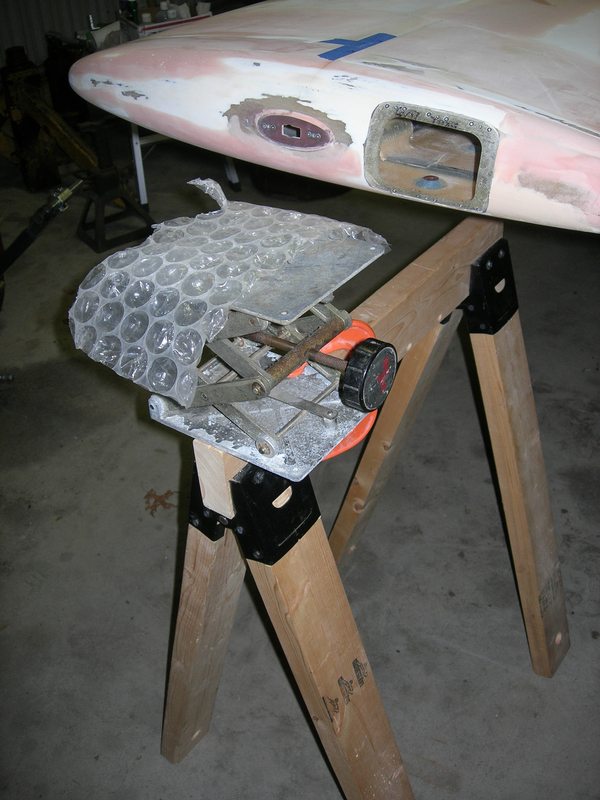

By attaching a laboratory lift jack to a sawhorse made for a nice wing lifting tool.
We used these tools, (we have two), to aid in rigging and derigging as well as lifting during setting wings for lift pin socket bonding.
Y10-10-31

Date: 10/31/2010
