Wing rigging tools 6.

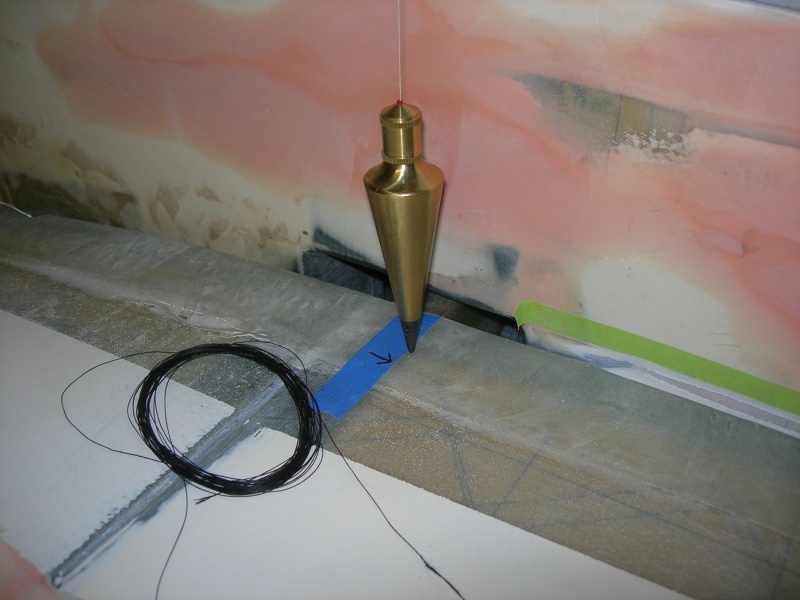

Size E Dacron sewing thread I use for Hot Air Balloons and a plumb are useful for checking for sweep in wings.
Prior picts in this album show the Incidence Gauge we made, along with the Europa manual recommended template we used along with a "Smart" digital level.
Y10-10-31

Date: 10/31/2010
