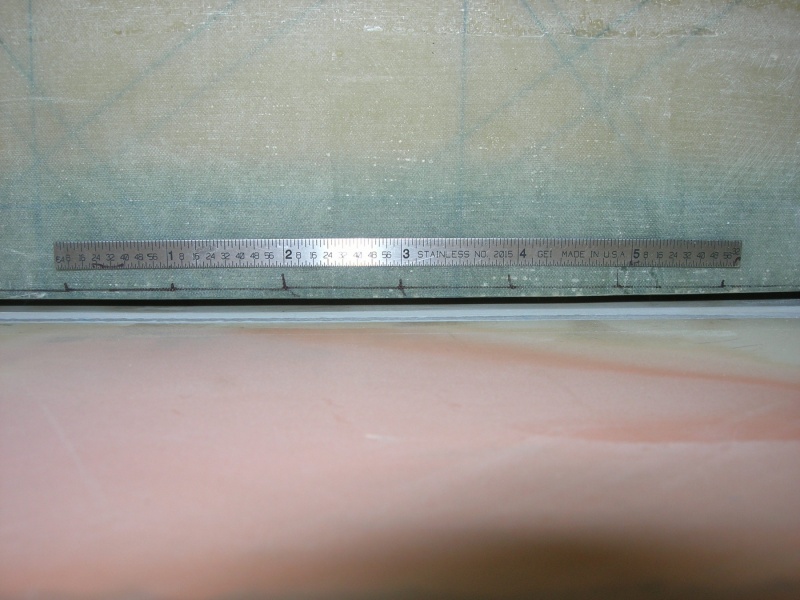

Wing to fuse fit 3.

This starboard wing doesn't need much trimming.
We are shooting for ~.235" clearance to fuse.
Y10-10-31

Date: 10/31/2010
