Wing to fuse fit 5.

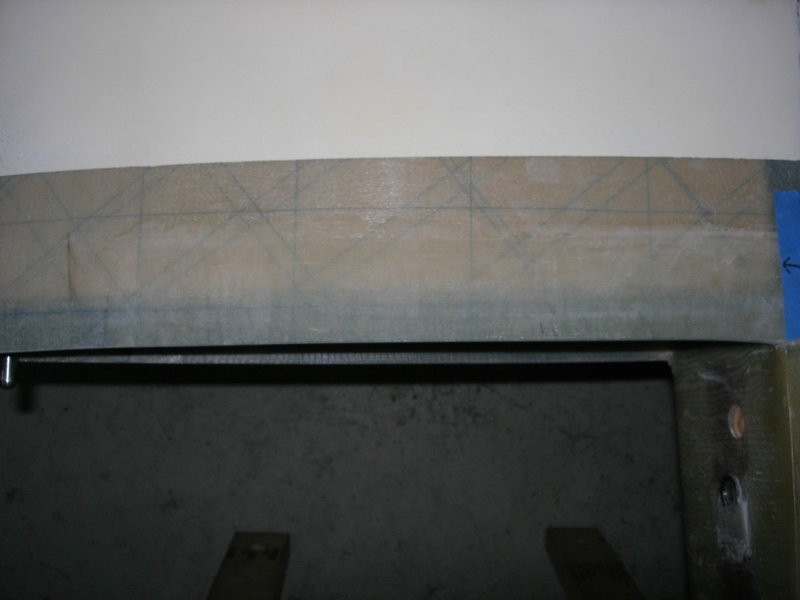

Alan sanded back the starboard top wingskin at the root that should give us ~ 1/4" overall clearance between root edge of topskin and fuse.
Y10-11-02

Date: 11/01/2010
