Wing to fuse fit 4.

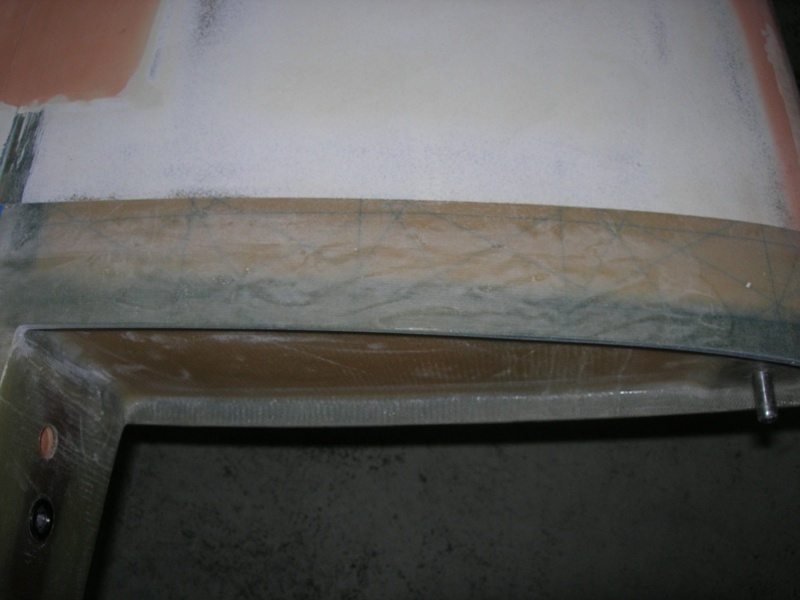

Alan sanded down the port wing top root for ~ 1/4" overall clearance between root edge and fuse.
Y10-11-02

Date: 11/01/2010
