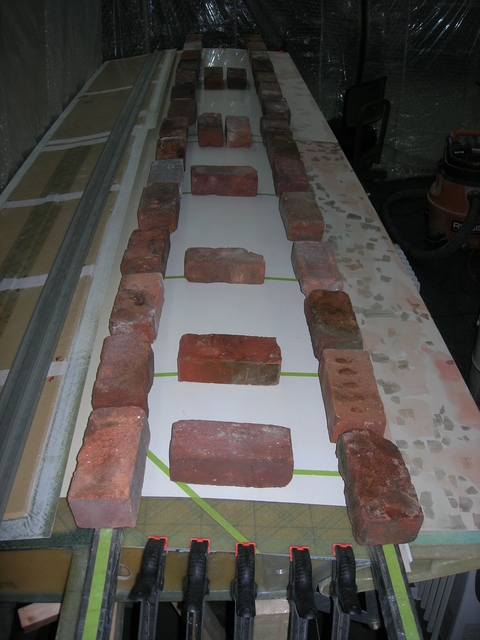

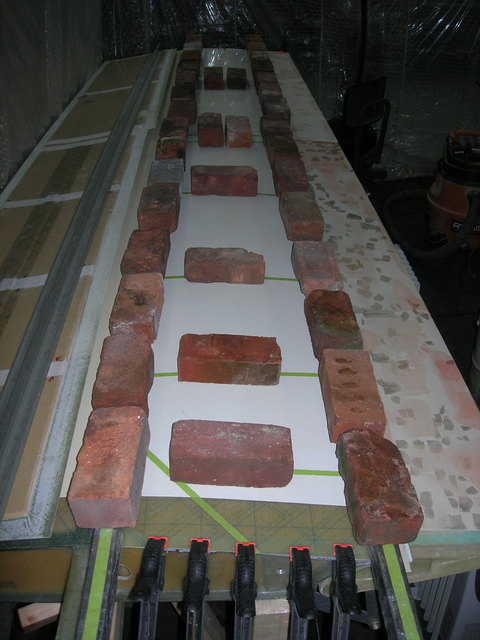

Starboard wing 85.

Redux/flox pass number 3 on starboard wing complete.
Didn't take pictures but filled other gaps as well as the worst rib that needed the most fill.
Used 75 grams, (yellow), for pass number 3.
Total Redux used thus far is 575 grams, (300 first, 200 second and 75 third).
Pleased we didn't make third pass the final bond, want to see pretty close to full coverage first, not just think it will be OK.
Would not have been pretty if we made second pass final!
Note: We are mixing Redux/flox just so it doesn't slump. Heard of more than 1 complaint that Redux didn't squeeze out enough and ended leaving skin high.
Y9-06-30

Date: 06/30/2009
