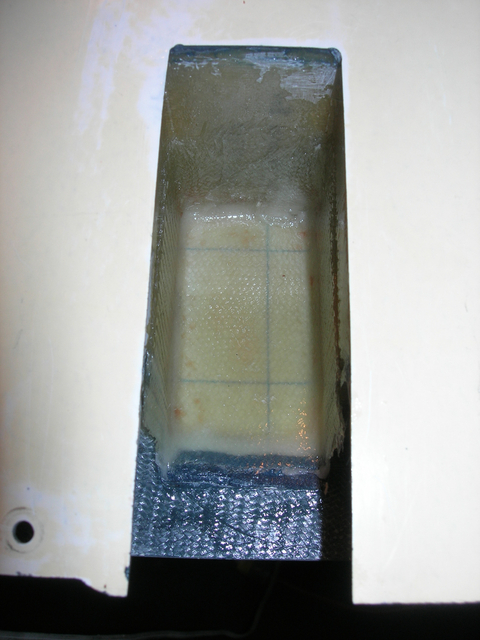

Starboard wing 114.

Starboard outboard mass balance box 3 BID layup complete.
Notice you can see BID being bonded with Redux on trail edge on this outboard side compared to smooth glass on inboard side.
This is because it is our newly fabricated to "fit well" aileron closeout!
Y9-07-18
