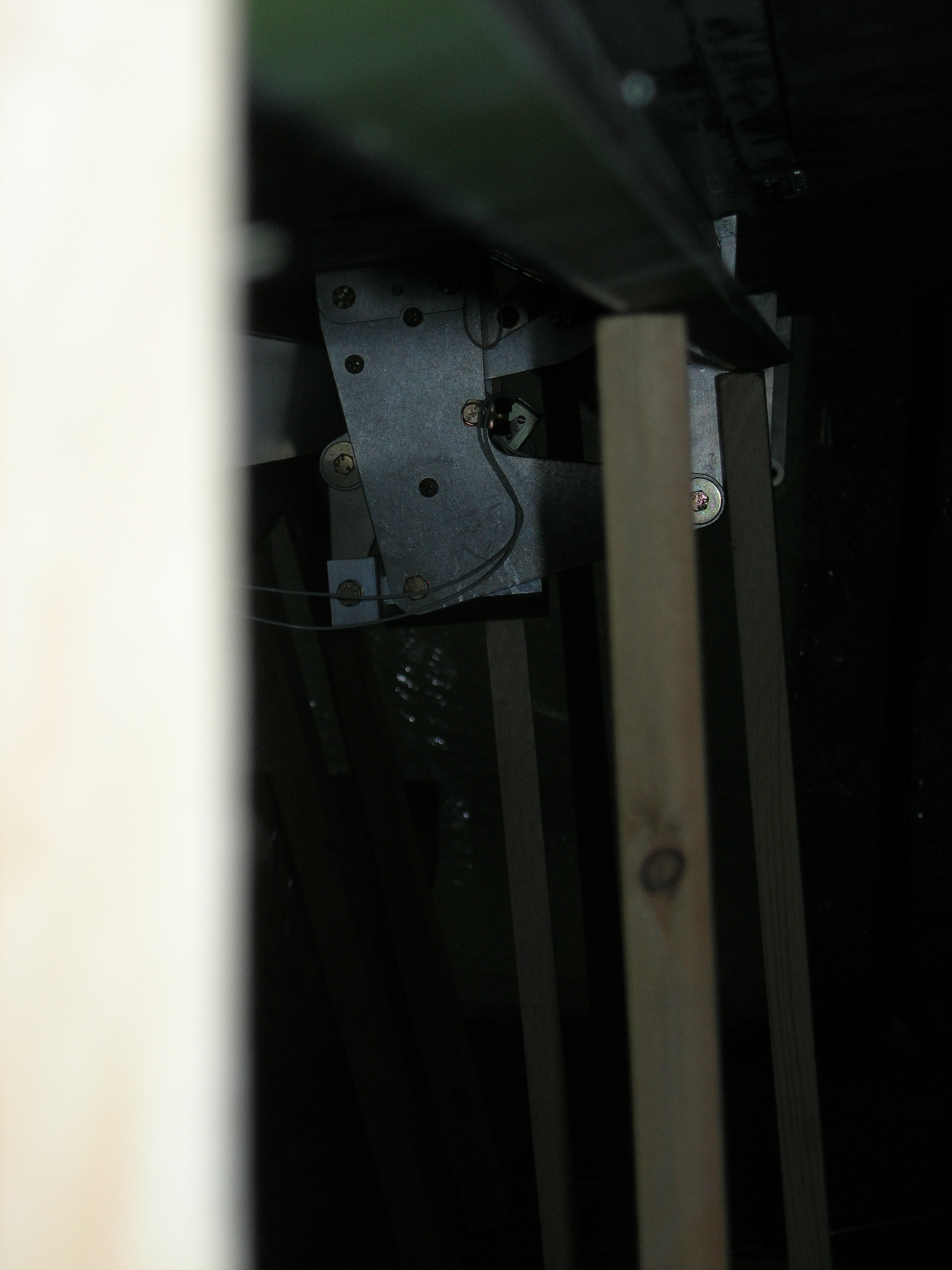

Supports for wing 1.

Wood 1" x 2"s supports holding up Aluminium U channel that is JB KWIKed to the bottom of aileron close out to hold it straight.
There's 3M 375 packaging tape on aileron that was scuff sanded prior to applying JB KWIK.
Y10-09-13

Date: 09/13/2010
