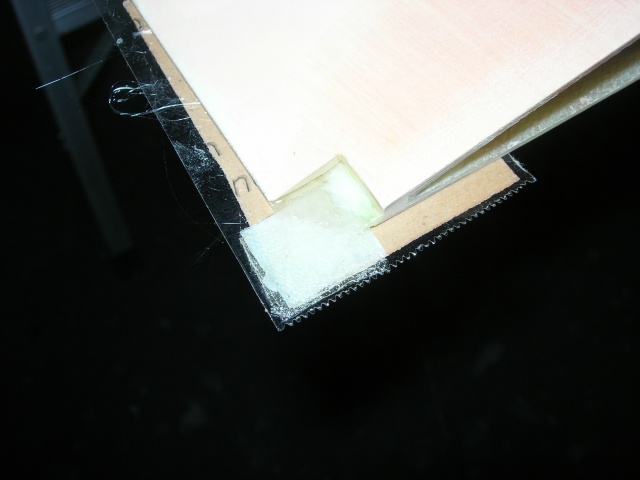

Broken edge of starboard aileron 4.

12 more plies, (3 at a time), were laid up on the top side.
That's an 18 ply layup! 1 BID is about the same thickness as 3 plies of thin model aeroplane cloth.
Y10-09-30

Date: 09/28/2010
