Wing 1.

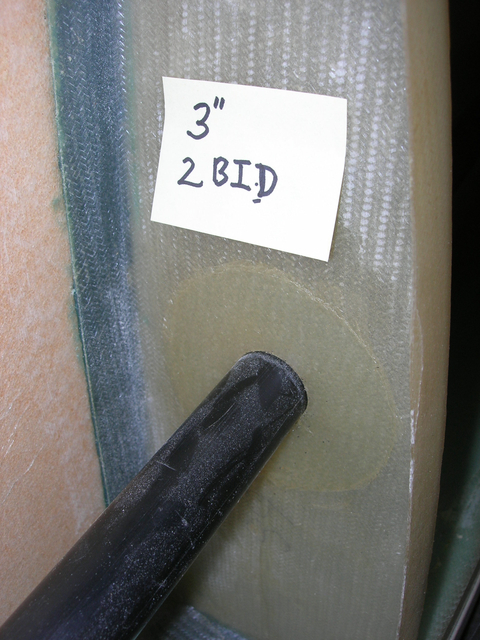

When we ran conduit, we laid up two 3" BID patches on each side of rib before making 1" conduit hole.
Except near wingtip, holes are in center of ribs, (less stress compared to top or bottom).
Y9-06-04

Date: 06/03/2009
