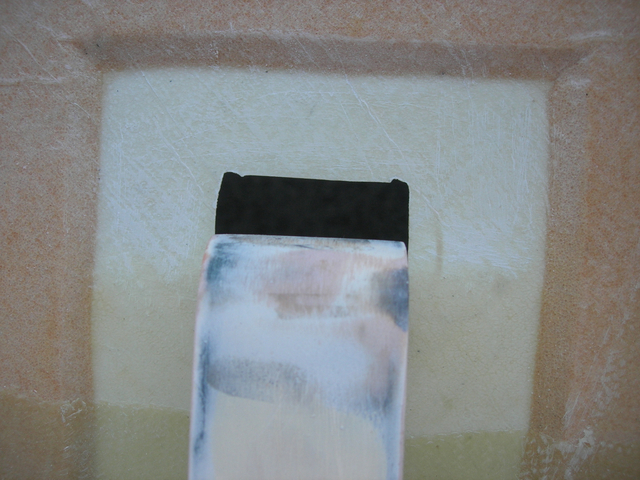

Port wing 8.

One of the port aileron mass balance clearance slots got cut too large.
Hard to see in this pict, but tip cutout is not only too long, but too wide as well.
Y9-09-15

Date: 09/15/2009
