IM003442

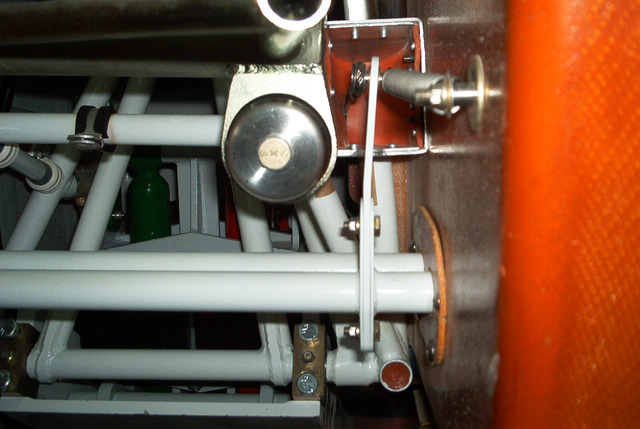

You can see cable seal installed, horn bent outboard for more clearance, and a glimpse of hand lapped swing arm bushing that has a turned half circle on ID so grease can get around. Don't have any pics with Stainless firewall attached, but pretty good seal.

Date: 10/31/2007
