Port rudder cable guide 2

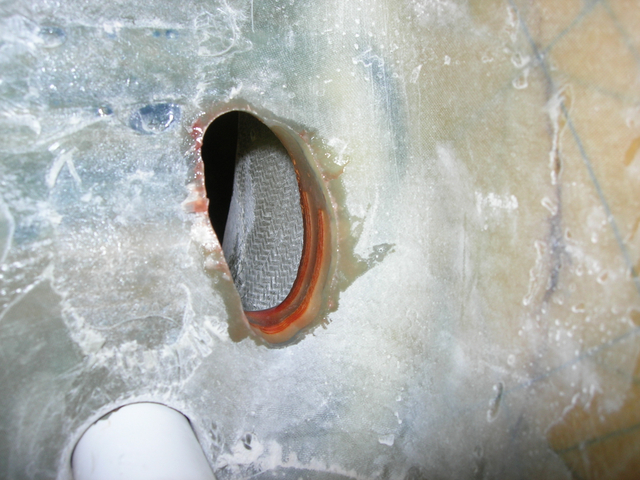

Shot inside fuse looking aft.
Slot is closer to tailwheel spring than I would have liked, but probably fine.
That said glad we added 3 BID to front face of sternpost/fuse joint (~2.5" wide and 12" up).
