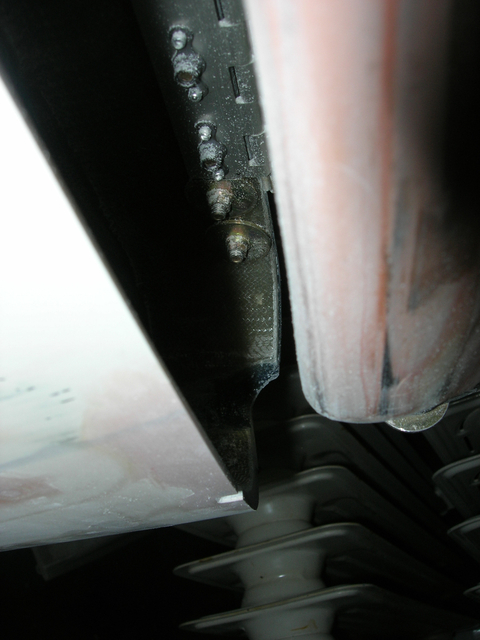

Rudddder_1

Port flange is light hitting in a few areas, but allowing 30 degree deflection.
Needed to notch trail edge of port fin to allow port rudder horn clearance to achieve 30 degree deflection.
Port stop will need to be installed outboard instead of inboard as factory manual suggests. There is no clearance inboard.
Y9-05-21
