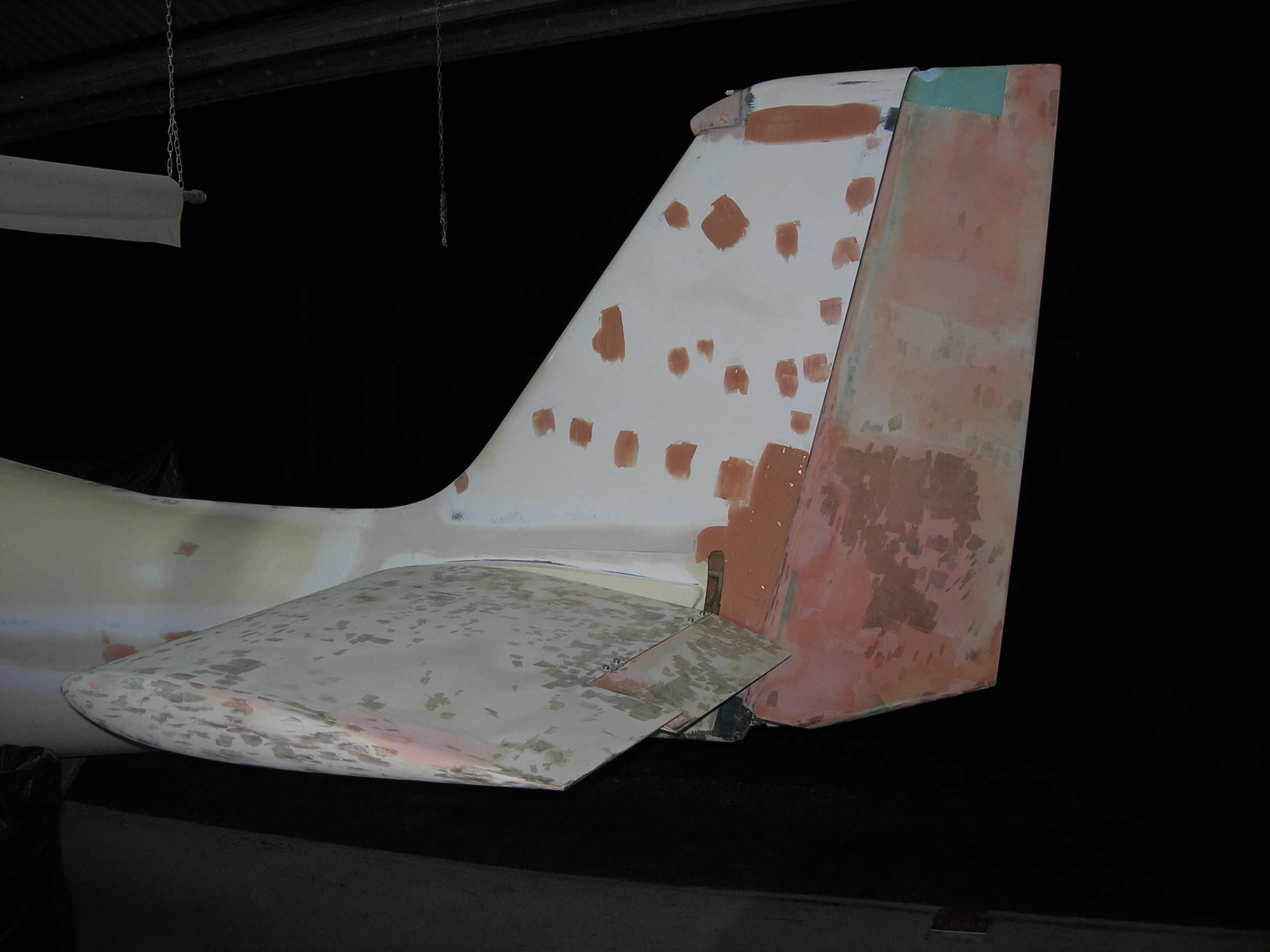

Rudddder_1_001

Hung stabilators, adjusted and verified proper up and down stops and proper antiservo tab throw was achieved.
Need to mutilate antiservo tabs so they don't hit rudder.
Y9-05-24

Date: 05/23/2009
