Rudddder_3

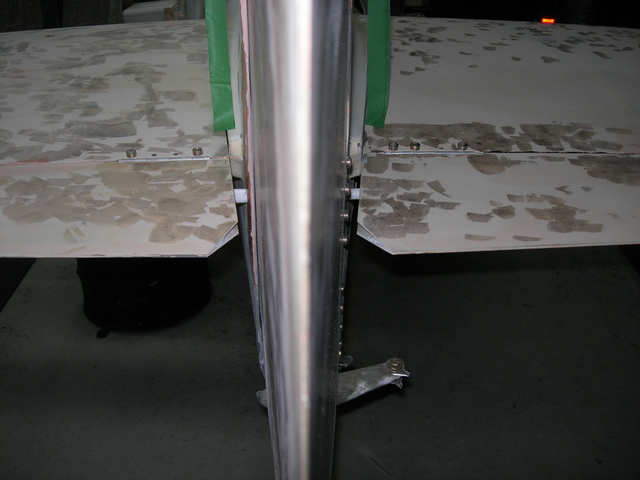

Worst case for interference was full up trim (antiservo tab trail edge in full down position) and full down stabilator (trail edge in full down position).
Green streamers are from rudder gust lock.
Y9-05-24

Date: 05/23/2009

Size:
Full size: 2592x1944
