Ruddder_1

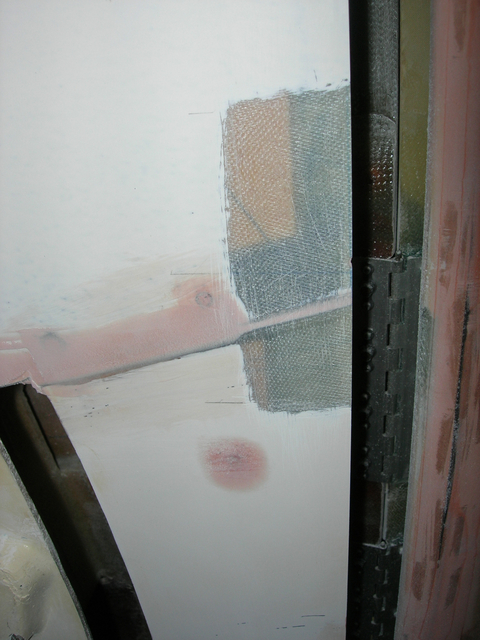

Port fuse seam/flange is thinned down on inboard side to where it is getting near a point. Needs just a little more sanding to achieve straight inboard edge.
We will layup 2 BID on outside to allow that little bit more required sanding and still have some fiberglass integrity remaining.
Fill will be needed on top of 2 BID to make outboard port fin flange straight.
Y9-05-21

Date: 05/21/2009
