Ruddder_7

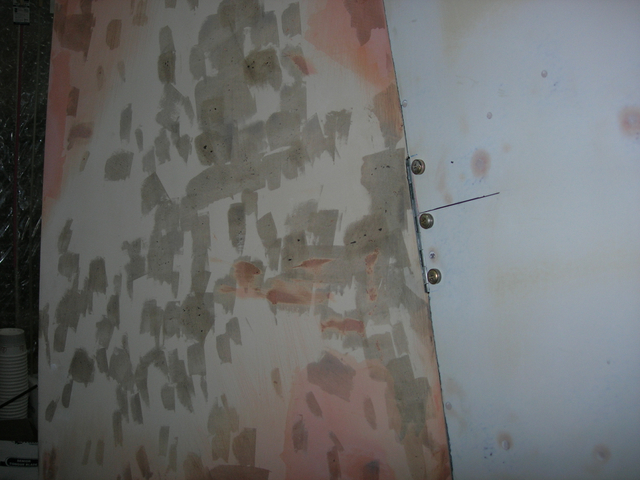

As per an old Europa newsletter, the center hinge at the approximate center has a straight edge when the rudder is centered.
Even though I spaced rudder 1/8" starboard by installing shims under hinge, it works perfect at this line!
We have 4 hinges, one additional added 2" above factory lower.
This is second factory located hinge down from top.
Y9-05-21

Date: 05/21/2009
