tailwheel_cabling_6

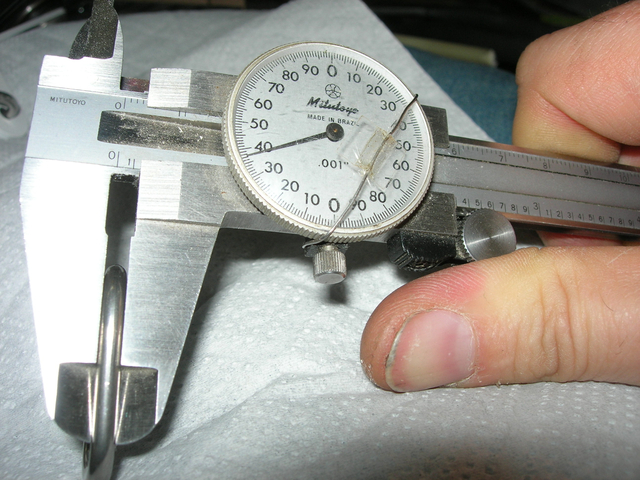

Threaded connector is .1375" in diameter. McMaster got back to me and PN8947T11 which is the 5/32" 316 Stainless connector has a min. breaking strength of 875 lbs, but PN8947T11 which is the zinc plated steel connector has a min. breaking strength of 1320 lbs. Even though I have stainless on hand will use zinc plated steel.
Y9-04-22

Date: 04/21/2009
