tailwheel_cabling_8

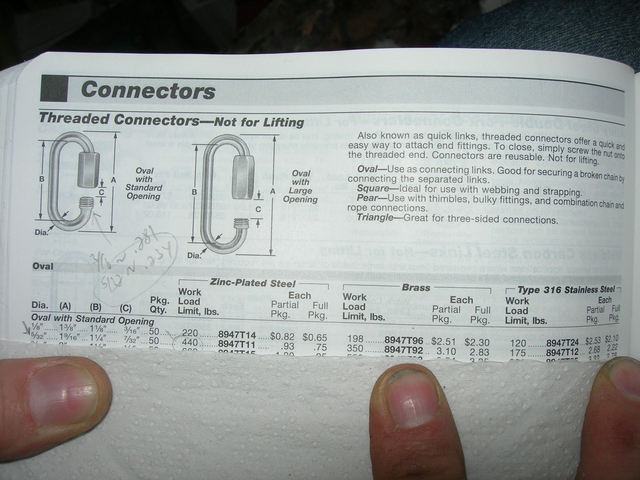

McMaster has working load of 316 stainless connectors at 175lbs, yet they are stamped by mfg. for 220kg. Min. breaking strength of turnbuckles is 1600lbs.
Y9-04-22

Date: 04/21/2009
