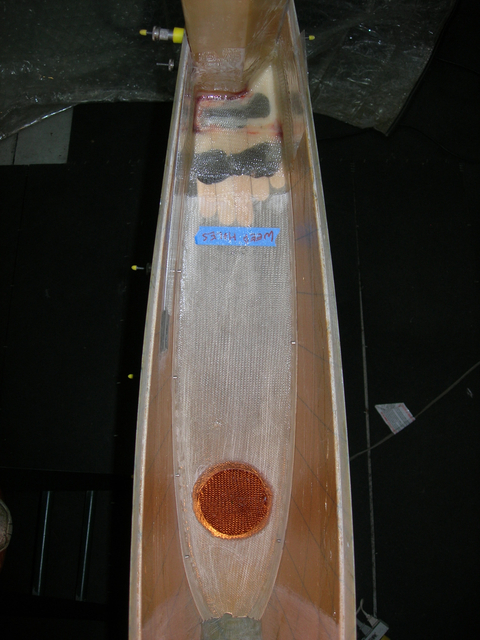

Bottom rib positioning 4.

Bottom rib 3 BID aft layup complete with Aeropoxy with 60 minute hardener.
The conduit reinforcement complete with 1 BID each side of rib with Aeropoxy with 30 minute hardener.
Y9-04-28

Date: 04/27/2009
