Fin cap install 10.

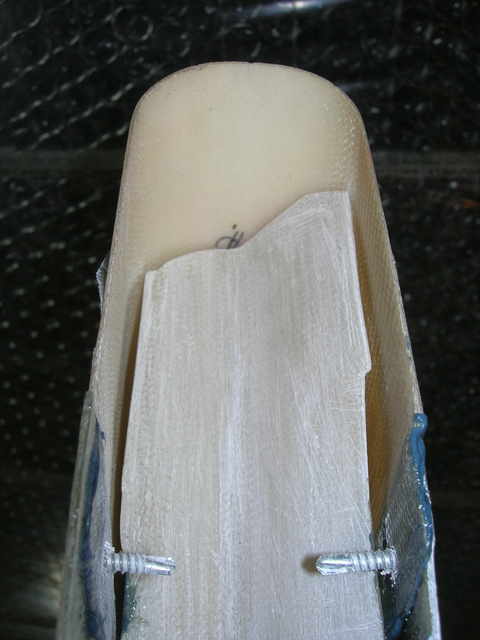

Mutilated flange on upper sternpost and removed fin cap joggle. After cure will BID in place.
See below album for details on fin cap bonding in place:
"Vertical fin gets access panel with Total Energy probe, camera and conduit. Y9-03-22"
Y9-05-08

Date: 05/07/2009
