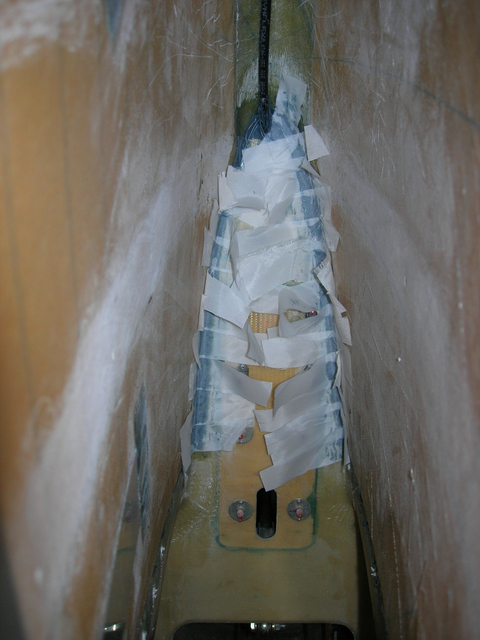

Fuse post bond 1.

Vertical fin rib got some foam dug out and a fillet of Redux/flox then peel ply. Hard job to not push too much flox through to the other side that would at best be difficult to remove. This joint will get 2 BID.
Y9-05-03

Date: 05/02/2009
