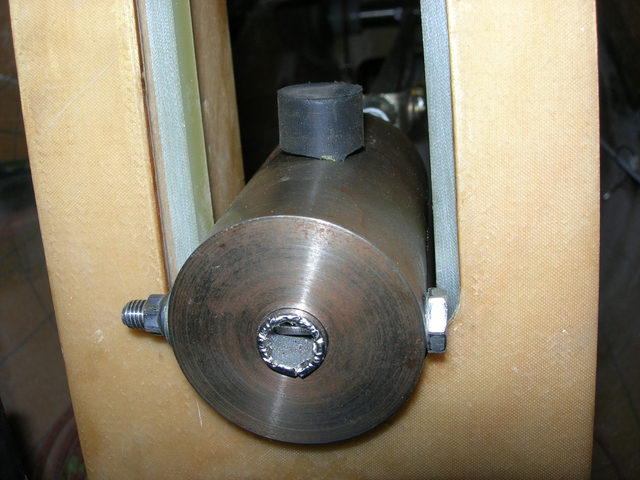

Mass balance flange 4.

Looking aft shot of up stop bumper.
Final installation will be with blue Loctite and a #8 phosphor bronze star washer. It will get silicone as well.
Y9-05-08

Date: 05/05/2009
