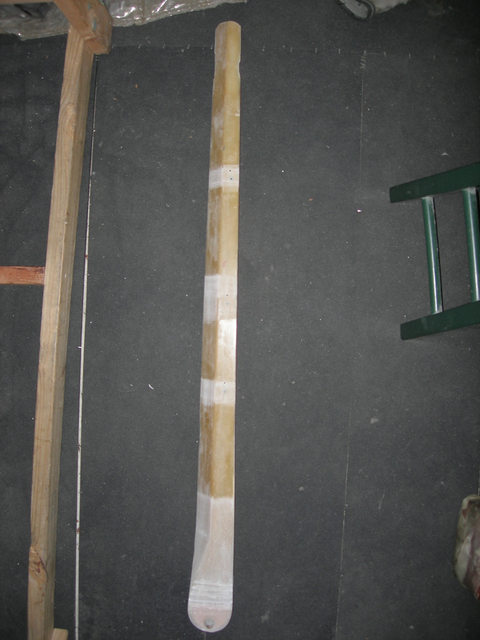

Sternpost bonding 2.

Sternpost gets a final wake up 36 grit, then 80 grit scuff sanding. The center rib needed to be lowered so as to not bulge fin too much, thats why it has a wide scuffing.
Y9-05-08

Date: 05/06/2009
