Sternpost bonding 4.

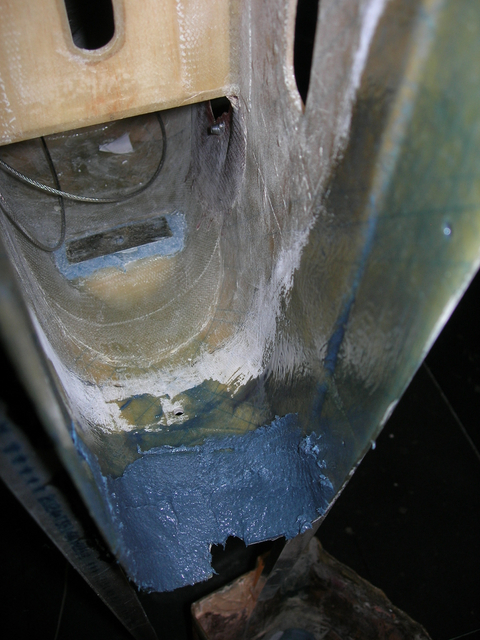

Lower heel of sternpost was a bad fit, so the fuse and sternpost got some Redux/flox. Lower 12" of sternpost will get 3 BID after Redux is cured.
Y9-05-08

Date: 05/07/2009
