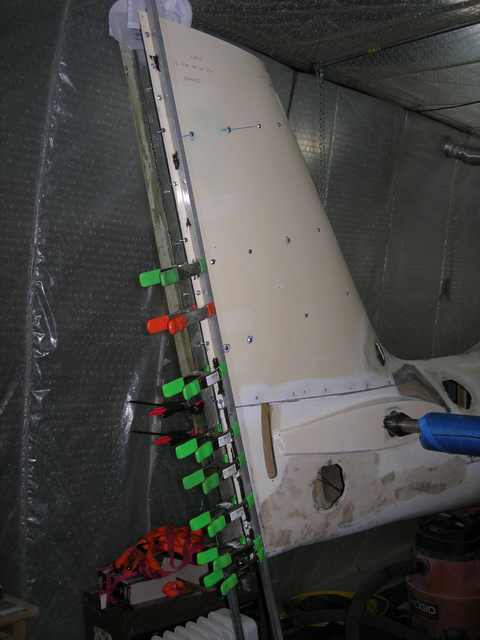

Sternpost bonding in 10.

Procedure was to drill premarked holes, (in addition to clecos), and install screws, then removed clecos and installed screws in cleco holes.
Peel ply was put on fin cap contact area as well as front face of sternpost where it will get 3 BID.
Y9-05-08

Date: 05/07/2009
