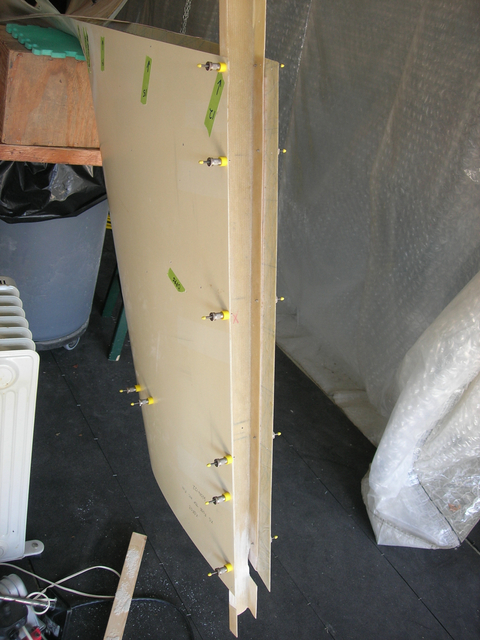

Sternpost trim 1.

You can see starboard side of sternpost is trimmed further forward compared to port. By having removed the joggle completely on the starboard side, it now lays flat against inside foam wall of fin.
Y9-04-26

Date: 04/26/2009
