Aft fuse conduit run 17.

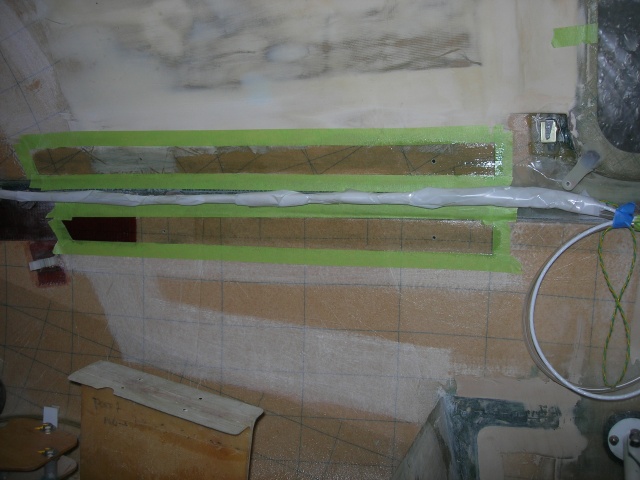

Port side contact area was marked out with green tape and scuff sanded. Wires and T.E. tube were wrapped in plastic and held in place. Contact area wet out with Redux.
Y11-01-02
XS-FUN

Date: 01/01/2011
