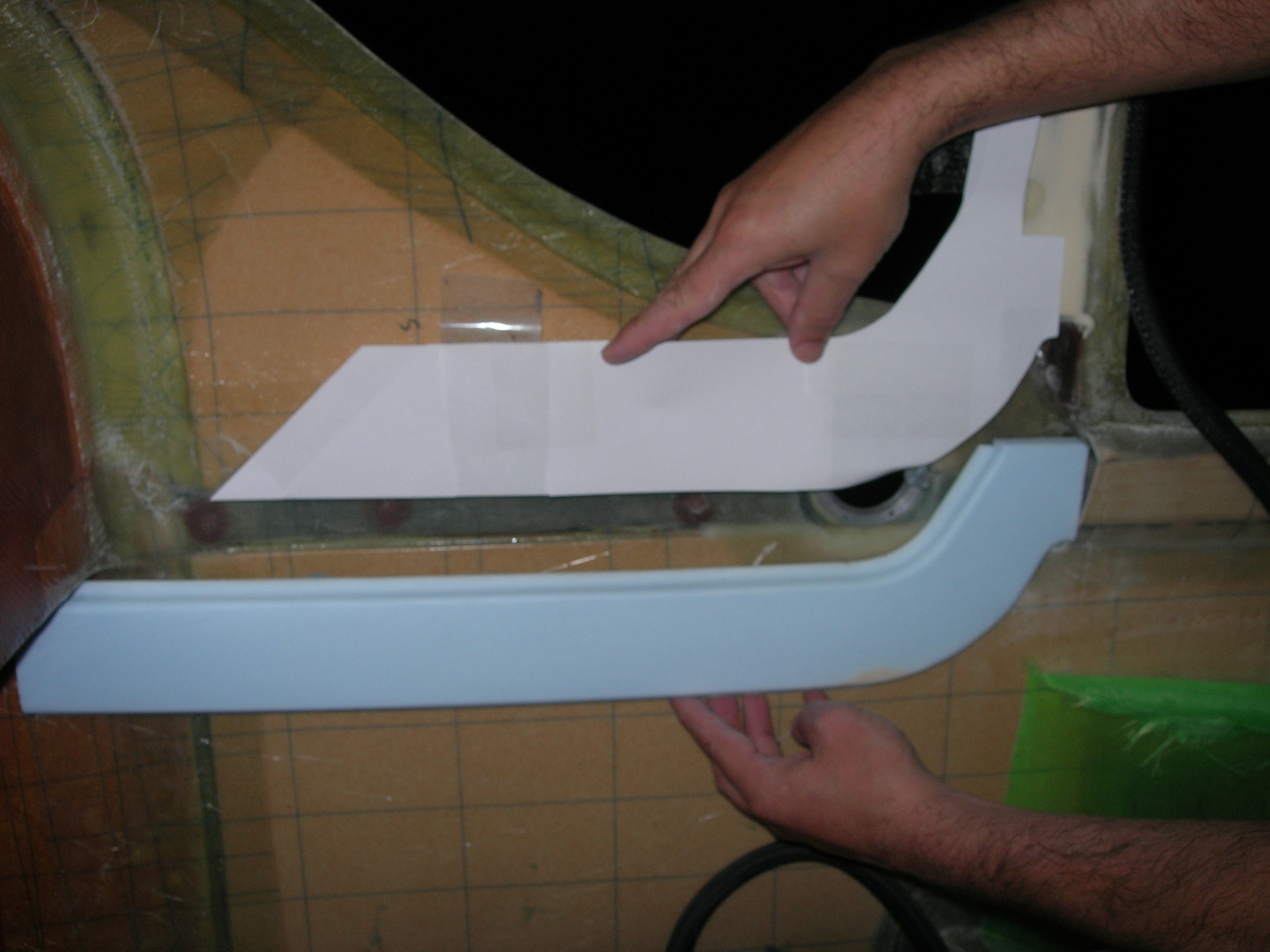

Front fuse conduit run 5.

After routing foam, the top of the mold needed to be sanded down a bit to make top of routed curve meet perfectly.
Here you see foam mold after Wayne sanded it down and trimmed to fit.
Wayne is holding his pattern.
Y10-08-20
