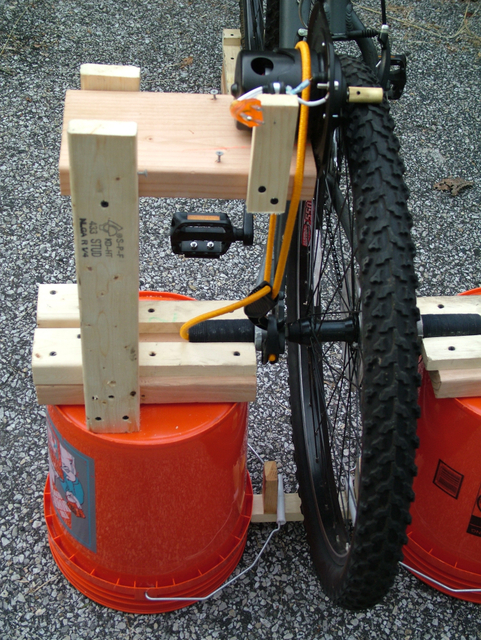

Generator tension cord 4 of 4.

If you orient the hooks of the tension cord aft, just above the axle nut, then things work out just about perfectly where you can store the extra tail of the tension cord inside the port axle extender to keep it out of harms way.
