DSCF0705

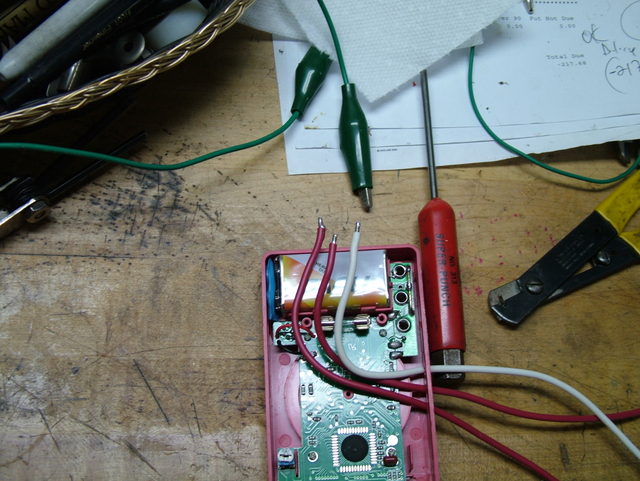

Time to modify the Meter.

I drilled three holes and then snaked three #14 wires that were first stripped about 1/2", tinned then snipped to this length. I added solder a little heavy so when attaching the wires to the meter all that was needed is hold in contact, heat and all flowed together.

The white is Com.

Y11-09-06

Date: 08/02/2003
