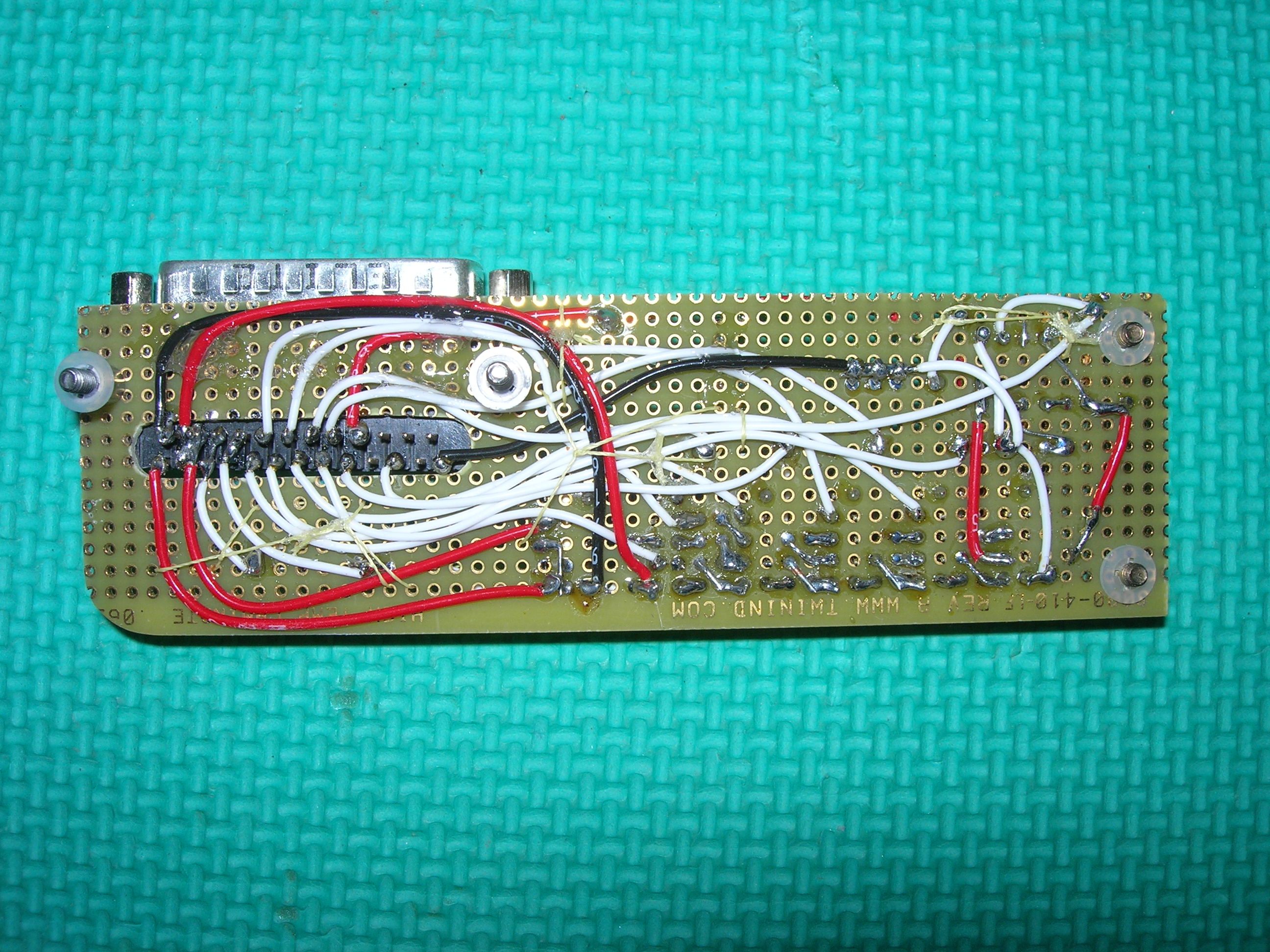

Wayne has warning PCB about 4/4 complete 4.

We are waiting on D-sub hardware from Allied, then it's time to install and wire this piece of the puzzle.
See:
Outriggers, down latch, throttle switch > housing and cable info, Gear and Door Warning.
For schematic and other info:
http://www.europaowners.org/forums/gallery2.php?g2_itemId=29497
