Instrument module cooling/demisting fans.

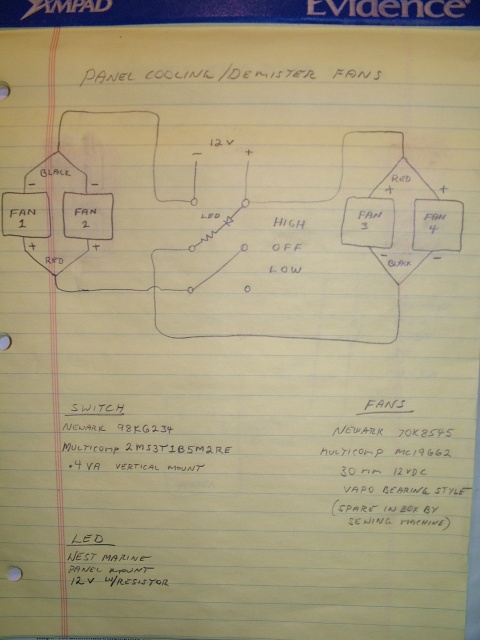

K(c)ool wiring arrangement. Notice high gives 12V to fans, low only 6 volts. Same goes for LED, low gives it 6 volts and high 12 volts.
