EuropaOwners A-265 - (XS-FUN) - N4211W / Wayne Gutschow+Ron Parigoris Electric shop DeluxeDeductsDeBucks! SCHEMATICS. Y10-08-07 SCHEMATICS. Rotax 914 TCU control wiring.
Advanced Search
View Slideshow (Fullscreen)

Y10-08-07 SCHEMATICS.

1. Wayne's Dad... ... 12. Instrument ... 13. LR3C... 14. Vertex 700 ... 15. Vertex... 16. Starter LED... 17. Rotax 914... 18. Control of ...

Random Images

Right_Plenum_front

Right_Plenum_front

Date: 07/09/2012 Views: 159615

DSCN5284_copy

DSCN5284_copy

Date: 12/19/2006 Views: 4129

IMG_1216ann

IMG_1216ann

Date: 06/13/2010 Views: 5196

Newest Image

EAA SITE

EAA SITE

Date: 08/23/2023 Views: 806924

Rotax 914 TCU control wiring.

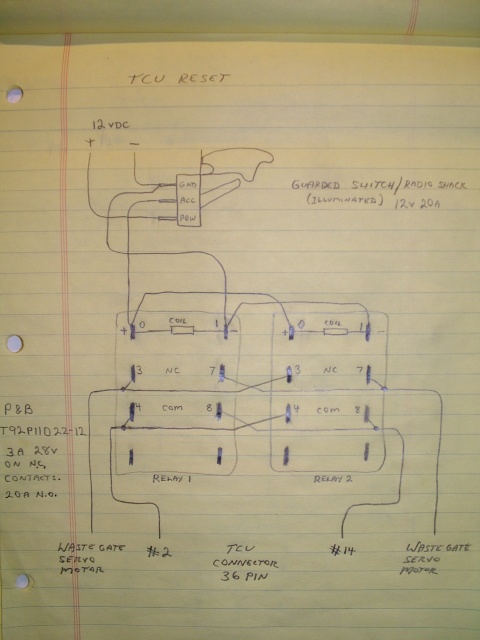

Wanting to use Radio Shack switch added a little complexity, but using two relays with jumpers add a bit of redundancy.
