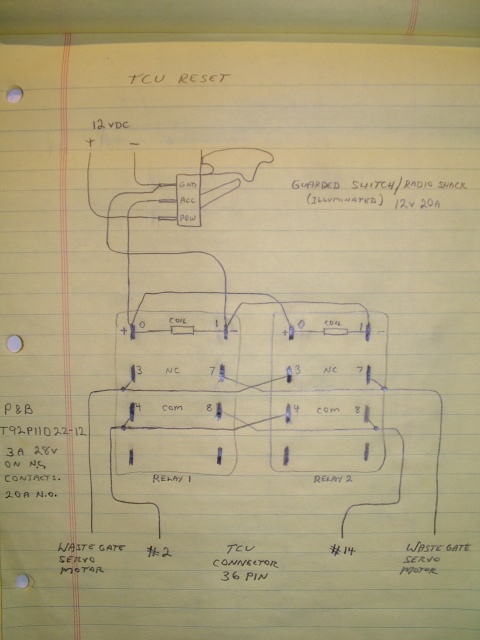

Rotax 914 TCU control wiring.

Wanting to use Radio Shack switch added a little complexity, but using two relays with jumpers add a bit of redundancy.
Y10-04-23

Date: 04/23/2009

Size:
Full size: 960x1280

Rotax 914 TCU control wiring.
