buss1

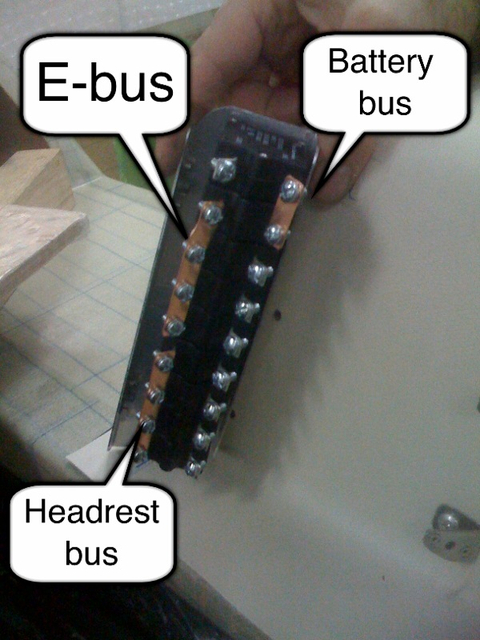

This is backside of 9 breakers on headrest panel. Notice on the always live buss the holes don't line up because the breakers are reversed. Thus needed to put a verticle and horizontal joggle on E-buss bar.
