buss4

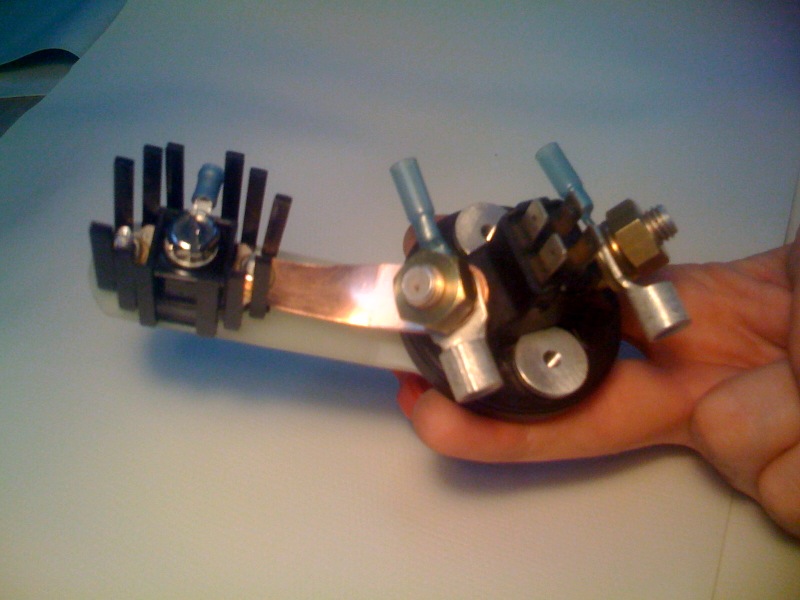

Here we are looking at the back side of the Flaming River battery switch with G-10 bonded to switch, and Schottky diode and heat sink mounted to G-10. .025" copper connects diode to switch side of switch. Notice turned and tapped aluminium inserts I made to allow for easy mounting of switch.
Y8-12-23

Date: 12/22/2008
