Mixture control 1.

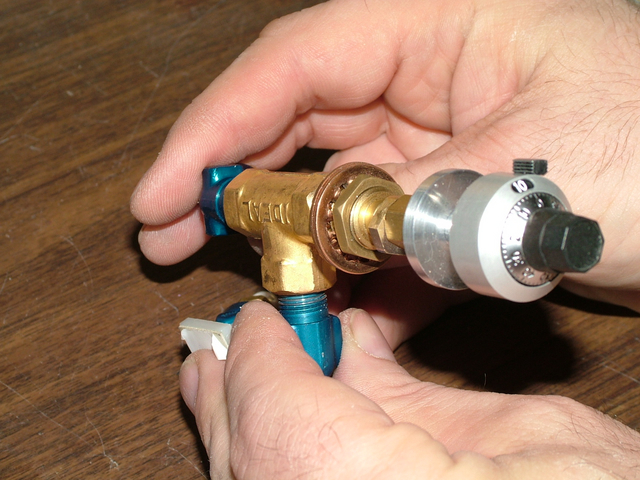

Here is Rotax 914 mixture control. Needle valve has a potentiometer counter kludged on the end of shaft so as to to count number of rotations and give you a numerical indication.
